O.symetric will provide you 10% more power, more acceleration and 10% less lactate production and fatigue!

On stock

Warning: Last items in stock!

Availability date:

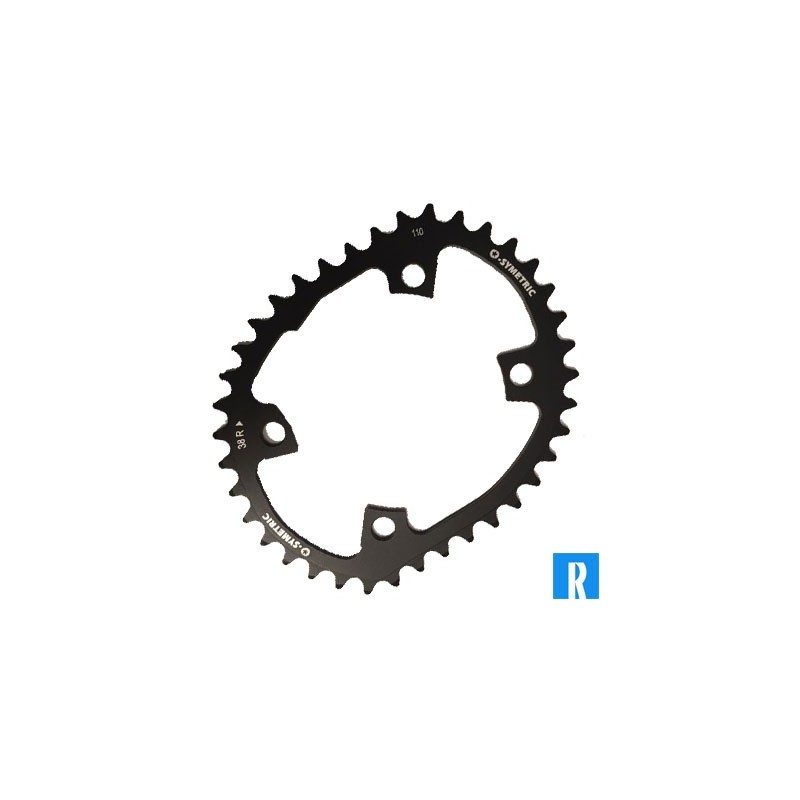

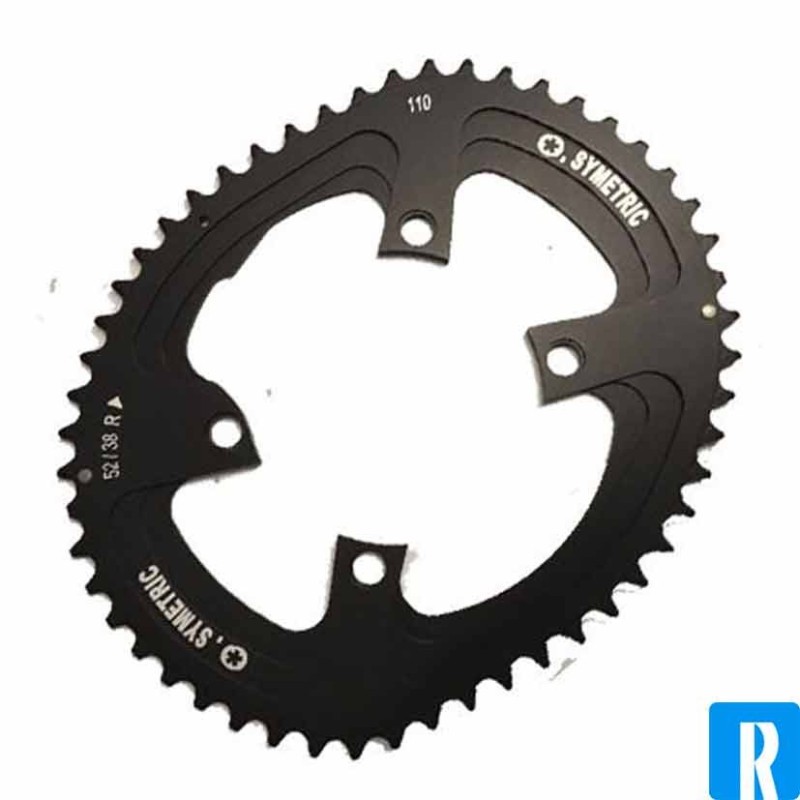

This inner oval chainring of O.symetric is reco mmended for time trial / race / recreation

The oval chainrings of O.symetric are being used by Chris Froome. The reason that no more continental riders are using the oval chainrings of O.symetric is a matter of sponsor interests. But there are more reasons why you may not want to choose de oval chainrings of O.symetric.

- +10% power
- +10% acceleration
- - 10% lactate production
- Less fatigue
- Natural pedalling / cycling
- Triathlon: the cycle to run transition is easier

For most of the bikes is a mounting kit a must, the derailleur should move up a bit.

The oval chainrings of O.symetric are fully optimized; which means; the engineers of O.symetric looked exactly how much power the rider supplies in the crank position, the ovality of the chainring is exactly adjusted at the right moment. Besides to that is this concept has been tested in daily use for many years instead of purely ‘drawing table studies’.

With the oval chainrings of O.symetric you’ll know for sure you’ll get the best results of your pedalling and by using more muscles it has proven that the acidification (lactate production) will come later or won’t come at all.

So cycle harder with less lactate, that’s a big reason many riders have chosen the oval chainrings of O.symetric.

**The negative sides of O.symetric oval chainrings**

Because of the oval chainrings of O.symetric are the biggest possible oval chainrings on the market which are used on a system that is normally used for round chainrings there are some negative sides to the oval chainrings of O.symetric.

- If you’re not cycling ‘pedal to the metal’, you surely can feel the point of change from large to small oval (position ‘five to six’). This could feel annoying.

- Because of you are riding on a system that is built for round chainrings, it is possible that you lose some gears. The so-called “crooked switch” is not possible anymore, in other words: when you’re cycling on the biggest front chainring it is not possible to use the biggest back gear. Also small to small is not possible anymore.

- If you want to use all your gears and want 100% optimal gearing you can choose for the oval chainrings of Rotor (Q-rings). With the oval chainrings of O.symetric you maybe should hold the gear-adjuster a bit longer for a smooth gearchange.

The above ‘negative’ sides of O.symetric chainrings are not meant to scare. Nowadays there are thousands of cyclist who are using the oval chainrings of O.symetric. But we want to be sure you know these negative sides of O.symetric so you can make a proper decision when choosing oval chainrings. We want to get rid of all the bad online stories about the oval chainrings.

When you’re properly informed about the chainrings and thereby make the right choices will everybody cycle better and faster with oval chainrings.

Beneeth tekst from research by Gilbert Storm and Lievin Malfait. See also attached PDF.

Comparative biomechanical study of circular and non-circular chainrings

for endurance cycling at constant speed.

L. Malfait, M.Mech.Eng., G. Storme, M.Sc.Mech.Eng.,

M. Derdeyn, M.Sc.Mech.Eng & Appl.Math.

Abstract – Non-circular chainrings have been available in cycling since the 1890’s. More

recently, Shimano’s Biopace disaster has spoiled the market for oval chainrings. The Harmonic

(1994) was re-launched in 2004 under the brand name O.symetric with some important

successes in professional cycling. In 2005, the Q-Ring (Rotor) entered the cycling scene.

However, non-circular chainwheels have not yet conquered the cycling world. There are many

reasons for this: the conservative world of cycling, the suffocating market domination of an

important manufacturer (and sponsor) of circular chainrings, the difficult bio-dynamics not

understood by users and last but not least, it is not easy to measure and to prove the advantages

of non-circular versus circular. Any reasonable non-circular chainwheel has about 50% chance

of being better than the circular shape. The only question is: what is the optimum shape and

how large can the difference be? The objective of this paper is to compare different chainring

designs. Relying on a mathematical model a biomechanical comparison was made between

circular and non-circular chainrings. The results of the study indicate clearly that (Criterion 1)

for equal crank power for both circular and non-circular chainwheels, the peak joint power

loads can be influenced favourably by using non-circular designs. For equal joint moments

(Criterion 2) for both circular and non-circular designs, the model calculates differences in total

crank power and differences in peak joint power loads. Results for both criteria are mostly

concurrent. The analysis also indicates that shape as well as ovality, but also orientation of the

crank relative to the chainring are important parameters for optimum design. It was found that

some non-circular shapes are clearly better than other designs. The mathematical model can

also be used as a tool for design optimization. Besides the commercial available non-circular

chainrings, some ‘academic’ non-circular profiles were investigated.

Release 2 differs from the previous publication by the use of the MATLAB® software package

for the mathematical model in stead of programs developed in Pascal. Conclusions in release 2

completely confirm the findings from the first release, although with more moderate crank

power efficiency gains. In release 2, result tables are replaced by graphs.

1. Introduction

In cycling, the bicycle-rider system can be modelled as a planar five-bar linkage.

See figure 1: Five bar linkage model of the bicycle-rider system.

The links are: the thigh, the shank, the foot, the crank and the linkage crank axiship

joint.

The five pivot points are: the crank axis, the pedal spindle, the ankle joint, the

knee joint and the hip joint.

Two pivot points are considered as fixed: the crank axis and the hip joint.

See among others Redfield and Hull, Journal of Biodynamics, vol 19-1986a,

pages 317-329.

3

Knee

Hip

Thigh

Shank

Foot

Cr ank

Ankle

Pedal

axis Crank axis

footangle

Crankangle

seat - t ube angle

Figure 1: Five bar linkage model of the bicycle-rider system.

For a five-bar linkage, two kinematic variables are necessary to uniquely specify

the linkage motion. Then the entire system is kinematically defined.

Usually the two kinematic variables are the crank angle and the pedal angle.

Hull et al experimentally measured the relationship between the crank angle and

the angle of the pedal. They expressed the pedal angle (= angle of the foot) as a

function of the crank angle.

A relatively accurate representation of this function is a sine function of the

form

Pedal angle () = A1 + A2 * sin (a + A3)

where a is the crank angle

and A1, A2 and A3 are constants experimentally determined.

Using the work of Bolourchi and Hull, we valued

A1 = 20.76°

A2 = 22.00°

A3 = 190.00°

4

Additional information and input data are to be specified:

- Position of the hip axis versus the crank axis (defined by the seat height and

the seat tube angle).

- Length of the bars: crank arm, foot, shank, thigh and the linkage crank axiship

joint.

- Relative position of the centre of gravity of the foot, shank and thigh versus

their pivot points. (*)

- Mass of foot, shank and thigh. (*)

- Moments of inertia of foot, shank and thigh. (*)

- Crank angular velocity.

(*) Values of the anthropometric parameters were estimated using the work of

Dempster, Whitsett and Dapena.

This study assumes a cadence of 90 crank revolutions per minute. Hence cycle

time is 0.667 sec.

This pedalling rate is generally accepted as being optimal (Hull et al) and

preferred by trained endurance cyclists.

The research also assumes a constant speed of the bicycle, which means a

constant chain linear velocity.

As a consequence a circular chainring has a constant angular velocity of the

crank throughout one revolution.

Non-circular chainrings have variations in angular crank velocity during one

crank cycle: this means, the crank angular velocity is a function of time.

The relation ‘crank angular velocity as a function of time’ for non-circular

chainrings must be known and will be investigated later.

The assumption is made that the forces, developed in the muscles of the lower

limbs, are directly related to the moments in the joints (‘joint-torques’): ankle,

knee and hip moments respectively.

Further in this paper, a method of calculation will be developed and presented

which enables determination of the moments (‘torques’) and power in the joints

as a function of the cycle-time.

2. Moments in the joints.

In order to develop a well-defined force on the pedal, the related muscles of the

joints have to develop in each of the joints a well-defined joint moment (joint

torque).

The force on the pedal (pedal force vector) varies in magnitude and in

orientation as a function of the crank angle.

5

By means of a pedal dynamometer, the normal and tangential components of the

pedal force were measured and registered as a function of time.

These measurements were executed at constant (steady state) crank cadence (90

rpm) and at constant power level (200 W), see figure 2.

Pedal Forces

-250

-200

-150

-100

-50

0

50

0

72

144

216

288

360

Crank Angle

Forces (N)

Tangential Force

Normal Force

Figure 2: Measured tangential and normal pedal forces (Hull et al)

Given the measured normal and tangential pedal forces and taking into account

the known relationship of the pedal angle as a function of the crank angle, the

normal and tangential crank force as a function of the crank angle can be

calculated.

The tangential crank force delivers the crank moment and consequently the

crank power.

See figure 3: Relationship between tangential and normal pedal forces and crank

forces.

Using vector decomposition techniques the force vector on the pedal can be

decomposed into horizontal (X) and vertical (Y) direction respectively:

Fx: denotes the horizontal pedal force component

Fy: denotes the vertical pedal force component

Both pedal force components, together with the dynamic forces and the

moments of the limbs are used to calculate the joint moments.

See figure 4: Pedal force vector decomposition: tangential and normal, Fx, Fy.

6

Foot Pedal

Cr ank Normal

crankf or ce

Tangent .

Crankforce

Pedal force

Tangent .

Pedalf or ce

Normal

Pedalforce

Figure 3: Relationship between tangential and normal pedal forces

Relationship between tangential and normal crank forces

+X

+Y

Fy

Fx Pedal Foot

Crank

Normal

Pedalforce

Tangent .

Pedal f or ce

Figure 4: Pedal force vector decomposition: tangential and normal, Fx, Fy.

7

By means of inverse dynamics the joint forces and the joint moments were

calculated, ref. figure 5.

Fhy

Fhx

X6,Y6

Xcgd,Ycgd

-mdg

X5,Y5

-Mk

-Fkx

-Fky

Mh

X5,Y5

Fky

Fkx

Mk

Xcgb,Ycgb

-mbg

-Fax X4,Y4

-Fay

-Ma

Fay

Fax

Ma

Xcgv,Ycgv X4,Y4

-mfg

Pfh

Pfv

X2,Y2

Hip

Thigh

Knee

Knee

Ankle

Ankle

Pedal axis

Shank

Foot

Figure 5: Free body diagrams of each link: balances of forces and moments.

Pfv = -Fy

Pfh = -Fx

8

The position data of each of the joints were calculated as a function of time.

Given the calculated position data of each of the limbs (links):

by taking the first derivative

- the linear velocity of the centre of gravity in X and Y

- the angular velocity of the limbs

- the angular velocity of the joints

were calculated.

by taking the second derivative

- the linear accelerations in X and Y

- the angular accelerations

were calculated.

From the free-body diagram (see figure 5) the reaction forces in the joints and

the joint moments can be calculated for the ankle, the knee and finally for the

hip.

For the foot with ankle joint:

Fax = mf * aXcgf – Pfh

Fay = mf * aYcgf – Pfv + mf * g

Ma = If * afootangle – Pfv * (X4 – X2) + Pfh * (Y4 – Y2)

– Fay * (X4 – Xcgf) + Fax * (Y4 - Ycgf)

Nomenclature:

Ma = ankle moment.

If = moment of inertia of the foot about the centre of gravity.

afootangle = angular acceleration of the foot.

Pfv = reaction force at the pedal, vertical component.

Pfh = reaction force at the pedal, horizontal component.

X2, Y2 = coordinates of pedal spindle.

X4, Y4 = coordinates of ankle axis.

Xcgf, Ycgf = coordinates of the centre of gravity of the foot.

Fax = force at the ankle joint, X component.

Fay = force at the ankle joint, Y component.

mf = mass of the foot.

aXcgf = linear acceleration of the centre of gravity of the foot, X component.

aYcgf = linear acceleration of the centre of gravity of the foot, Y component.

g = acceleration of gravity (9.81 m/s²)

9

Similar equations are defined for the shank with the knee joint and for the thigh

with the hip joint.

The total joint moments given in the equations above are determined by the

static forces and dynamic forces and the respective moments.

Figure 6 shows the schematic of this partitioning providing a valuable insight

into the dynamics of the pedalling process.

Joint power = Joint moment * Joint angular velocity

Joint angular velocity is a function of crank angular velocity.

As a consequence, for a given bar geometry, given anthropometric data and a

given pedalling rate, the dynamic forces (-moments) can be influenced by

varying the crank angular velocity.

The variation of the crank angular velocity changes the dynamic joint moments,

via the dynamic forces and –moments of the leg segments (limbs). These

10

changes affects the instantaneous total joint moment and the instantaneous total

joint power.

This insight leads to the conclusion that changing the crank angular

velocity gives the opportunity to introduce possible improvements to the

drive mechanism of the bicycle.

Taking a constant pedalling rate for both means that:

- the circular chainring has a constant crank angular velocity

- the non-circular chainring has a varying crank angular velocity, which is

defined by the geometry of the chainring.

3. Method to calculate the crank angular velocity and crank angular

acceleration for any chainring geometry.

The chainring geometry has to meet the following conditions:

1. The contour of the pitch-polygon (pitch-curve) must be equal to n times

the pitch of the chain, whereof n equals the number of chainring teeth.

2. Each side of the pitch-polygon must be exactly equal to the pitch of the

chain.

3. The chainring geometry must be convex; this means no concave sections

are allowed.

4. Point-symmetry for the pitch-curve is a minimum condition.

Constructive limitations may also arise because of the front derailleur: the ratio

major axis versus minor axis (ovality) of a non-circular chainring has to be kept

within certain limits.

In order to define the crank angular velocity as a function of time for a noncircular

chainring, the combination chainring-chain must be considered.

This remains also the case even when the pitch-curve is mathematically defined

e.g. for an ellipse.

The procedure to follow is visualised in figure 7.

Keeping the ‘working chain length’ constant, the successive positions of the

chainring were drawn (using AutoCAD software), each time corresponding with

one tooth rotation of the sprocket. One tooth rotation also equals one time unit

(constant speed of the bicycle is assumed).

In case the curving of the chainring is not constant (non-circular), a deviation

versus the theoretical angle of rotation was measured (a kind of ‘interference’).

Applying this method for each chainring tooth, a matrix with crank angle

positions and corresponding time can be created.

11

Figure 7: How to measure the crank angle per unit of time.

By means of curve-fitting techniques (polynomial regression) the most optimal

mathematical expression of the crank angle as a function of time is calculated.

In general, a nine degree polynomial of the form

Y = A0 + A1*X + A2 *X2 + A3 *X3 + …… + AN *XN

with N = 9

fits closely to the data (correlation > 0.9999).

By taking the first derivative of the equation, with respect to time, the

relationship “crank angular velocity as a function of time” is determined.

By taking the second derivative with respect to time, the relationship ‘crank

angular acceleration as a function of time’ is determined.

4. Criteria of bio-mechanical comparison circular with non-circular

chainrings.

The mathematical model was programmed using MATLAB® software. The

MATLAB® symbolic math toolbox generates and calculates all the necessary

first and second derivates.

The ten coefficients of the polynomial equation of the crank angle as a function

of time are used as input data.

Antropometric, geometric, and other data are constants stored in the

MATLAB® files and are adaptable if needed.

The circular chainring is considered as being the reference.

12

Data of standard pedal forces as a function of time are applied in case of the

circular chainring.

The pedal force profile measured by Hull et al is used (see figure 2). This

approach is acceptable for a comparative study.

All chainrings considered in the study are “normalised” in AutoCAD to 50 teeth.

Given the above-mentioned data, by means of MATLAB®, the mathematical

model calculates the moments and the power as well as further outputs.

All important output data are represented in graphs, using MATLAB® graphic

tools.

Criterion 1:

Given the same instantaneous crank-power development throughout the full

crank cycle for both circular and non-circular chainrings,

the development of the joint-power was calculated for both circular and noncircular

designs. Calculations were executed for the knee and the hip joint.

During the first part of the cycle, where the joint angular velocity is positive, the

extensor muscles of the joints are the main drivers. For the hip this is mainly the

Gluteus Maximus and for the knee primarily the Rectus Femoris and the Vastii.

During the second part of the cycle, where the joint angular velocity is negative,

the flexor muscles of the joints are the main drivers. For the hip this is mainly

the Rectus Femoris and for the knee primarily the Gastrocnemius, the Biceps

Femoris and the Hamstrings.

Approach:

In a first run,

the MATLAB® program calculates the positions, the velocities, the

accelerations, the total joint moments, the total joint power and the crank power

of the circular chainring.

The pedal reaction forces in the X and Y directions were calculated using the

normal and tangential pedal forces measured by Hull et al (see figure 2).

Time was declared as a symbolic variable, so all subsequent equations were

evaluated as a function of time.

A graph of the knee power and the hip power development as a function of time

was prepared.

13

In a second run,

MATLAB® calculates the crank angular velocity of the non-circular chainring

being the first derivate of the crank angle versus time.

The crank power as a function of time, taken over from the first run (circular

chainring), was now used as input.

From this, the pedal reaction forces in the X and Y directions were deduced,

assuming that these reaction forces relate to each other in the same way as the X

and Y components of the circular chainring do.

Knee power and hip power versus time were now recalculated.

Plots of knee power and hip power versus time for both the circular and non

circular chainring, are presented.

Criterion 2:

Comparison of the total crank power over the full crank cycle taking into

account identical development of the instantaneous joint-moments for both,

circular and non-circular chainring..

Approach:

In a first run,

the MATLAB® program calculates the positions, velocities, accelerations, total

joint-moments, total joint power and crank power of the circular chainring.

Time is declared as a symbolic variable, so all subsequent equations are

evaluated as a function of time.

A graph of the crank power as function of time is prepared.

In a second run,

MATLAB® calculates the crank angular velocity of the non-circular chainring,

being the first derivate of the crank angle versus time.

The joint-moments as function of time, taken over from the first run are now

used to recalculate the X and Y components of the crank force. Here from, crank

power versus time is calculated and a plot of crank power versus time is

presented.

The graphs are clearly showing the differences in crank power development

between the circular and the compared non-circular chainring.

A MATLAB® tool allows to calculate and to display the mean value of the

crank power over one full cycle for one pedal, for both the circular and the non

circular chainring.

14

5. Non-circular chainring types

Convention: 1. Crank angle

* crank arm vertical equals 0°,

arbitrary defined as being “Top-Dead-Centre” (T.D.C.)

*rotation: counter clockwise

*crank angle is being measured from T.D.C

( = crank arm vertical), counter clockwise, to major axis.

2. Ovality (‘e’ in the figures): ratio of major axis to minor axis

• O.symetric-Harmonic

-designed: 1993

-inventors: J.L. Talo & M. Sassi, France

-ovality: 1.215

-geometry: see figure 8

-symmetry: point symmetric (bi-radial)

-chainring radius proportional with variation of crank torque

-angle major axis versus crank arm: 78 ° (major axis assumed to be the

middle of the circle segment of the oval);

-radial oriented chainring teeth

-commercialised

Figure 8: O.symetric-Harmonic

• Hull oval

-designed: 1991

-inventor: prof M.L. Hull, Univ California, Davis, USA

-ovality: 1.55

-geometry: see figure 9

-symmetry: point symmetric (bi-radial)

15

-theoretical shape to eliminate “internal work”

-angle major axis vs crank arm: 90°

-not commercialised

Figure 9: Hull oval

• Rasmussen oval

-designed: 2006

-inventor: prof John Rasmussen, Univ of Aalburg, Denmark

-ovality: 1.30

-geometry: ellipse-like, see figure 10

-symmetry: bi-axis symmetric

-designed to minimize maximum muscle activation

-angle major axis vs crank arm: 72°

-not commercialised

Figure 10: Rasmussen oval

16

• Q-Ring (Rotor)

-designed: 2005

-inventor: Pablo Carrasco, Rotorbike, Spain

-ovality: 1.10

-geometry: modified ellipse (circle arcs at extremities of major axis), see

figure 11

-symmetry: bi-axis symmetric

-designed to minimize time spent in the dead spots and to maximize the

benefit of the power stroke

-angle major axis vs crank arm: adjustable, advised 70°-75°

-commercialised

Figure 11: Q-Ring

• Biopace oval

- designed: 1983

-inventor: Shimano, Japan (Prof. Okajima)

-ovality: 1.04 (earlier makes 1.09, 1.17…)

-geometry: skewed ellipse with major and minor axes not perpendicular,

see figure 12

-symmetry: point symmetric

-designed to take advantage of leg inertia

-angle major axis vs crank arm: -8° (crank arm approximately parallel to

major axis)

-commercialised

17

Figure 12: Biopace

• OVUM ellipse

- designed: before 1980 (?)

-inventor: ?

-ovality: different types, 1.18 and 1.235

-geometry: ellipse, see figure 13

-symmetry: bi-axis symmetric

-designed to reduce negative effects of dead spots

-angle major axis vs crank arm: 90° ( also types with adjustable crank

orientation)

-commercialised

Figure 13: OVUM ellipse

18

• Ogival oval

- designed: 1993

-inventor: Bernard Rosset, France

-ovality: 1.235

-geometry: intersection of 2 circle arcs with circle centres on minor axis,

see figure 14

-symmetry: bi-axis symmetric

-designed to reduce negative effects of dead spots and facilitate climbing

-angle major axis vs crank arm: 54°

-commercialised

Figure 14: Ogival

• Polchlopek oval

- designed: 1970 (?)

-inventor: Edmond Polchlopek, France

-ovality: 1.214

-geometry: 2 semicircles joined by 2 bridges of 3 ‘flat’ teeth, see figure 15

-symmetry: bi-axis symmetric

-designed to reduce negative effects of dead spots

- angle major axis vs crank arm: 102°

-commercialised

19

Figure 15: Polchlopek oval

• LM-Super oval

-designed: 2009

-inventor: Lievin Malfait

-ovality: 1.31

-geometry: see figure 16

-symmetry: point symmetric (bi-radial)

-chainring reflects polar plot of crank torque throughout one crank cycle

-angle major axis versus crank arm: adjustable from 78° to 118° in 5

positions (major axis assumed to be the middle of the circle segment of

the oval);

-the ‘flat teeth segment’ and the “circle segment” are bridged by an

Archimedean spiral segment.

-chainring teeth perpendicular on the pitch-curve.

-not commercialised

20

Figure 16: LM-Super oval

6. Biomechanical results

The properties and performances of the different non-circular chainrings

examined in this paper, are displayed in the pictures and graphs below.

At the top of each page the pictures show the shape, the ovality and two

different crank orientations of the chainring involved: on the left, the crank

positioning proposed by the inventor or designer and, on the right, the optimal

orientation calculated by this study.

In the middle of the page, the performances with respect to criterion 2 are

plotted (crank power development at equal joint moments, circular and noncircular).

The mean crank power of the non-circular chainring, calculated by MATLAB®,

is plotted as a dash-dotted red line. A data tip indicates the value of the mean

crank power of the non-circular.

The mean crank power of the circular chainring, also calculated by MATLAB®,

is 104 W in all cases and is mentioned on the graphs.

The ratio between the mean non-circular crank power and the mean circular

crank power is a measure for the efficiency gain of the non-circular chainring,

compared to a circular one.

21

As an example: a ratio of 1.025 means that, at equal joint moments, the mean

crank power of the non-circular chainring is 2.5 % superior versus the mean

crank power of the circular, which is favourable.

At the bottom of the page, the graphs show the performances with respect to

criterion 1 (development of knee and hip power at equal crank power, circular

and non-circular).

Data tips indicate the knee peak power (extensor muscles) for both the circular

and non-circular chainring.

The ratio between the knee peak power (extensor muscles) of the non-circular

chainring versus circular is a measure of the efficiency with respect to the knee

joint peak load (extensor muscles).

As an example: a ratio of 0.94 (or 94%) means that, at equal crank power, the

peak knee power (extensor muscles) is 6% inferior with a non-circular chainring

compared to a circular one, which is favourable.

In cycling, the knee extensor muscles are assumed to be of major importance.

Muscular fatigue and (knee) injuries primarily are caused by peak joint loads.

Hence, comparing the knee peak power generated by the knee extensor muscles

is useful and is a well-founded basis to compare and to judge the performances

of non-circular chainrings.

Information about the development of the peak power loads in the knee flexor

muscles, in the hip extensor muscles and in the hip flexor muscles, for both

circular and non-circular chainring, can be found by reading out the different

graphs (values are not mentioned in the overview tables).

6.1. Optimal crank orientation

By changing step-by-step the crank angle versus the major axis of the noncircular

chainring we can search for an optimal crank orientation.

An optimal crank position would mean:

-the lowest peak power load in the joints, given the same crank power

development (criterion 1)

-the highest crank power efficiency, combined with the lowest peak power

load in the extensor joint muscles of knee and hip, given the same joint

moments (criterion 2)

for both, circular and non-circular.

22

As an example we study the O.symetric case.

versus circular chainring

Criterion 1 Criterion 2

Angle Major

Axis

versus Crank

Peak Power

Knee

Extensor

Crank Power Peak Power

Knee

Extensor

Peak Power

Hip

Extensor

78.0° -1.5% vs circ. -0.7% vs circ. -1.8% vs circ. +4.6% vs circ.

109.6° -7.9% +2.4% -10.0% +15.1%

117.0° -7.5% +2.5% -10.0% +16.2%

124.3° -6.5% +2.9% -9.9% +15.4%

128.0° -4.9% +2.9% -7.6% +14.0%

132.0° -3.2% +2.7% -6.0% +18.0%

We notice the same trend for all the investigated chainring designs.

As a general rule we may conclude that the optimal crank orientation is located

in the zone from 110° up to 120°, angle between major axis of the non-circular

chainring and the crank, measured counterclockwise.

In case the crank is optimal oriented and the major axis of the non-circular

chainring is vertical then we see the crank arm roughly perpendicular on the seat

tube direction (“rule of thumb”).

Above mentioned figures are applicable for a seat tube angle of about 73°.

The optimal crank orientation is a function of the bicycle geometrie and the

anthropometric parameters of the rider.

Simulations with a seat tube angle of e.g. 78° (time trial bike) learn that the

optimal zone is located in the range between 105° and 115°.

23

6.2. Graphs

Biopace Original -8.2°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 103.8

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs biopace Orig., at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : −8.2 °−− Ovality : 1.04

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

Mean Circ:

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−100

0

100

200

300

X: 0.1067

Y: 277.5

X: 0.12

Y: 280.6

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs biopace Orig., at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : −8.2 °−− Ovality1.1

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Biopace Orig./Circ:

101 %

24

Hull Original 90° Hull Optimal 107°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 104.6

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Hull Orig., at equal Joint Moments −− 90 Trm

Angle Major axis vs Crank : 90 °−− Ovality : 1.55

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

Mean Circ=

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 107.4

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Hull + 2T, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 107.5 °−− Ovality : 1.55

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

Mean Circ=

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.12

Y: 277

X: 0.08

Y: 259.1

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Hull Orig., at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 90 °−− Ovality1.55

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Hull Orig/Circ:

94.5

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−300

−200

−100

0

100

200

300

X: 0.12

Y: 277

X: 0.1067

Y: 244.8

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Hull + 2T, at equal Crank Power −− 90 Trm

Angle Major axis vs Crank : 107.5 °−− Ovality1.55

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Hull +2/Circ:

88.2 %

25

Osymetric Original 78° Osymetric 117°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 103.3

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Osymetric original, at equal Joint Power −− 90 Rpm

Angle Major axis vs Crank : 78°

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ

mean circ:

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 106.6

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Osymetric +5T rotated, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 117°

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ

Mean Circ =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.12

Y: 277

X: 0.09333

Y: 273.3

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Osymetric original, at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 78°−− Ovality1.215

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Osy Orig/Circ:

98.5 %

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.1067

Y: 277.5

X: 0.12

Y: 256.5

Time (Sec)

Knee & Hip Power

Knee & Hip power Circular vs Osymetric+5t at equal Crankpower 90 Rpm

Angle Major axis vs Crank: 117°

Hip circular

Knee circular

Hip Osymetric+5

Knee Osymetric+5

Osy5/Circ:

92.5 %

Osy/Circ:

110 %

26

Ogival Original 54° Ogival Optimal 110.5°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Ogival

o

rig, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 54 °−− Ovality : 1.235

X: 0

Y: 97.3

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

Mean Circ =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 104.6

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Ogival +7T, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 110.5−− Ovality : 1.235

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

Mean Circ =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.09333

Y: 297

X: 0.1067

Y: 277.5

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Ogival

o

rig, at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 54 °−− Ovality1.235

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Ogival−Orig/Circ.

107 %

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.1067

Y: 277.5

X: 0.1067

Y: 259.3

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Ogival +7T, at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 110.5−− Ovality1.235

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Ogival7/Circ:

93.5 %

27

Q-Ring original 74° Q-Ring optimal 107.5°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 99.24

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Q−ring original, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 74°−− Ovality : 1.1

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

mean Circ:

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 104.2

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Q−ring +4T rotated, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 107.5°−− Ovality : 1.1

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

mean Circ. =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.09333

Y: 281.4

X: 0.12

Y: 277

Time (Sec)

Knee & Hip Power

Knee & Hip power Circular vs Q−ring origineel, at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 74° −− Ovality: 1.10

Hip Circular

Knee Circular

Hip Qring Orig

Knee Qring Orig

Qring−orig/Circ

101.5 %

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−100

0

100

200

300

X: 0.1067

Y: 277.5

X: 0.1067

Y: 268.9

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Q−ring +4T rotated, at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 107.5° −− Ovality: 1.10

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Qring+4/Circ:

97 %

28

Ovum-118 Original 90° Ovum 118 Optimal 106°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 103.8

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Ovum 1.18 Orig., at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 90°−− Ovality : 1.18

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 105

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Ovum 118 +2T, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 105.6−− Ovality : 1.18

Crank Pow. Circular

Crank Pow. Non−Circ.

y mean

Mean Circ. =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−100

0

100

200

300

X: 0.1067

Y: 277.5

X: 0.1067

Y: 269.8

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Ovum 1.18 Orig., at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 90°−− Ovality1.18

Hip Circular

Knee Circular

Hip Non−Circ

Ovum118−Orig/Circ: Knee Non−Circ

97 %

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.12

Y: 277

X: 0.1067

Y: 262.7

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Ovum 118 +2T, at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 105.6−− Ovality1.18

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Ovum 118+2/Circ

94.5 %

29

Ovum-124 Original 90° Ovum-124 Optimal 106°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 103.8

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Ovum 124 Orig, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 90 °−− Ovality : 1.24

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

mean Circ. =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 105.3

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Ovum 124 +2T, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 106 °−− Ovality : 1.24

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

Mean Circ =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.1067

Y: 277.5

X: 0.09333

Y: 268.4

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Ovum 124 Orig, at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 90 °−− Ovality1.24

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Ovum124/Circ

97 %

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.1067

Y: 277.5

X: 0.1067

Y: 258.5

Time (Sec)

Knee & Hip power Circular vs Ovum 124 +2T, at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 106 °−− Ovality1.24

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Ovum124+2/Circ:

93 %

30

Pochlopek Original 102° Polchlopek optimal 109.5°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 105.2

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Polchlopec Orig., at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 102°−− Ovality : 1.214

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ.

Mean circular=

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 105.6

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Polchlopek+1T, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 109.5°−− Ovality : 1.214

Crank Pow. Circular

Crank Pow. Non−Circ.

y mean

mean Circ =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.1067

Y: 277.5

X: 0.1067

Y: 264.2

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Polchlopec Orig., at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 102° −− Ovality: 1.214

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Polchlopec/Circ

95 %

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.1067

Y: 261.3

X: 0.12

Y: 277

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Polchlopek+1T at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 109.5°−− Ovality1.214

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Pol.+1/Circ.=

94.3%

31

Rasmussen Original 73° Rasmussen optimal 113°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 101.1

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Rasmussen Orig., at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 72°−− Ovality : 1.30

Crank Pow. Circular

Crank Pow. Non−Circ.

y mean

Mean Circular=

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 105.7

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Rasmussen+5, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 113°−− Ovality : 1.30

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non−Circ

Mean Circ. =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.09333

Y: 286

X: 0.12

Y: 277

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Rasmussen Orig. at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 72°−− Ovality1.30

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Rasm. orig/Circ.

103 %

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−300

−200

−100

0

100

200

300

X: 0.1067

Y: 277.5

X: 0.1067

Y: 251.2

Time (Sec)

Knee & Hip Power ( W ) Knee &

Hip power Circular vs Rasmussen+5

at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 113°−− Ovality1.30

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

rasm+5/Circ=

90.5 %

32

LM-Super - Original 107° LM-Super – Optimal 114.5°

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 106.5

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Optimal, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 107°−− Ovality : 1.31

Crank Pow. Circular

Crank Pow. Non−Circ.

mean Non Circ.

mean Circular =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−100

−50

0

50

100

150

200

250

300

350

400

X: 0

Y: 106.8

Time (Sec)

Crank Power ( W )

Crank Power − Circular vs Optimal1, at equal Joint Moments −− 90 Rpm

Angle Major axis vs Crank : 114.5°−− Ovality : 1.31

crank Pow Circ.

Crank Pow Non−Circ.

mean Non−Circ.

Mean Circular =

104

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−200

−150

−100

−50

0

50

100

150

200

250

300

X: 0.1067

Y: 277.5

X: 0.1067

Y: 254.7

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Optimal at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 107°−− Ovality1.31

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Optimal−Org/Circ=

92 %

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

−300

−200

−100

0

100

200

300

X: 0.1067

Y: 277.5

X: 0.1067

Y: 251.9

Time (Sec)

Knee & Hip Power ( W )

Knee & Hip power Circular vs Optimal1 at equal Crank Power −− 90 Rpm

Angle Major axis vs Crank : 114.5°−− Ovality1.31

Hip Circular

Knee Circular

Hip Non−Circ

Knee Non−Circ

Optimal1/Circ:

90.8%

33

6.2. Overview of results

Non Circular

Chainring

shapes

Ratio

Major

versus

Minor

Axis

Angle

Major

Axis

versus

Crank

Peak

Knee Power

Extensors

for same given

Crank Power

% % difference vs

Circular

Crank Power

for same given

Joint Moments

% difference vs

Circular

Biopace 1.04 -8° +1 % -0.2 %

Hull Original 1.55 90° -5.5 % +0.58 %

Hull Optimal 1.55 107.5° -11.8 % +3.3 %

O.symetric Original 1.215 78° -1.5 % -0.67 %

O.symetric Optimal 1.215 117° -7.5 % +2.5 %

Ogival Original 1.235 54° +7 % -6.4 %

Ogival Optimal 1.235 110.5° -6.5 % +0.4 %

Ovum-118 Original 1.18 90° -3 % -0.2 %

Ovum-118 Optimal 1.18 106° -5.5 % +1.0 %

Ovum-124 Original 1.24 90° -3 % -0.2 %

Ovum-124 Optimal 1.24 106° -7 % +1.25 %

Polchlopek Original 1.214 102° -5 % +1.15%

Polchlopek Optimal 1.214 109.5° -5.7 % +1.54 %

Rasmussen Original 1.30 72° +3 % -2.8 %

Rasmussen Optimal 1.30 113° -9.5 % +1.6 %

Q-Ring Original 1.10 74° +1.5 % -4.58 %

Q-Ring Optimal 1.10 107.5° -3 % +0.2 %

LM-Super Original 1.31 107° -8 % +2.4 %

LM-Super Optimal 1.31 114.5° -9.2 % +2.7 %

Ranking

Hull Optimal 1.55 107.5° -11.8 % +3.3 %

LM-Super Optimal 1.31 114.5° -9.2 % +2.7 %

O.symetric Optimal 1.215 117° -7.5 % +2.5 %

Rasmussen Optimal 1.30 113° -9.5 % +1.6 %

Polhlopek Optimal 1.214 109.5° -5.7 % +1.54 %

Ovum-124 Optimal 1.24 106° -7 % +1.25 %

Ovum-118 Optimal 1.18 106° -5.5 % +1.0 %

Ogival Optimal 1.235 110.5° -6.5 % +0.4 %

Q-Ring Optimal 1.10 107.5° -3 % +0.2 %

Biopace 1.04 -8° +1 % -0.2 %

34

7. Concluding remarks

Relying on a mathematical model, a biomechanical comparison was made

between a circular and different non-circular chainring designs.

The mathematical model is partly based on literature study but is also

based on own developments and new insights.

Especially the methodology to accurately measure the crank angle

velocity is new and has, to the authors’ knowledge, not been applied

before. This accurate measuring method is however of paramount

importance with non-circular profiles and is the necessary basis for

reliable input data and hence a guarantee for reliable output results.

Also the choice of the two criteria to compare performances - circular

versus non-circular chainring – is new and has, to the authors’ knowledge,

not been applied before.

The results of this biomechanical study indicate clearly that (criterion 1)

for equal instantaneous crank power for both circular and non-circular, the

peak joint power loads can be influenced favourably or unfavourably by

using non-circular chainring designs.

This is a purely (bio)-mechanical issue.

For equal instantaneous joint moments (criterion 2) for both, circular and

non-circular chainring designs, the model calculates differences in total

crank power efficiency and in peak power loads on the joints.

The results for both criteria are mostly concurrent.

Some non-circular chainring profiles are undeniably better than other

designs and perform clearly better than circular ones, at least according to

the criteria considered in this paper.

An analysis of the test results indicates clearly that three geometric

parameters are important for optimal design of a non-circular chainring,

namely the ovality, the crank orientation and the shape.

A balanced combination of these geometric parameters should result in

the most optimal non-circular chainring compared to circular.

The most optimal solution would mean:

-the lowest peak power load in the joints, given the same crank power

development (criterion 1)

-the highest crank power efficiency, combined with the lowest peak power

load in the extensor joint muscles of knee and hip, given the same joint

moments (criterion 2)

for both circular and non-circular.

35

A first important finding of the study is that a minimum ovality is needed

to be able to yield attractive power efficiency rates. The results also show

that a positive correlation exists between the degree of ovality and the

attainable crank power efficiency percentage compared to circular.

A second interesting conclusion is that for a specific non-circular

chainring, peak power loads on the joints and the crank power efficiency

can be adapted continuously by changing the crank orientation versus the

major axis of the oval.

However, the results of the biomechanical study show clearly that, in

many cases, ‘advantages’ and ‘disadvantages’ are inseparable.

Indeed, by increasing the crank angle versus the major axis,

for criterion 1 and criterion 2, it becomes apparent that:

• peak power load on both knee joint muscle groups, extensors and flexors,

is decreasing, whereby:

peak power load of the extensors decreases to a minimum at

optimal crank angle orientation. This minimum is below

circular chainring peak power load.

peak power load of the flexors is mostly above circular

chainring peak power load.

• peak power load on both hip joint muscle groups, extensors and flexors,

is increasing, whereby:

peak power load of the extensors is mostly below circular

chainring peak power load.

• crank power efficiency index is increasing to a maximum in the area of

optimal crank orientation.

For the knee joints, experience shows that the extensor muscles are an

important restricting factor. Overloading the knee extensor muscles

frequently leads to knee injuries.

As a consequence, when searching for an optimal crank angle, given the

geometry of the non-circular, it makes sense to aim for a minimization of

the peak power load in the extensors of the knee joint, to try to maximize

the crank power efficiency and to keep an acceptable peak power load on

the knee flexor and on both types of hip joint muscles.

For all the investigated non-circular chainrings the above defined ‘optimal

crank angle versus major axis’ falls in the range of 110° to 120°.

36

In case the crank is optimal oriented and the major axis of the non-circular

chainring is vertical then we see the crank arm roughly perpendicular on

the seat tube direction (“rule of thumb”).

This means that in such a position, the angular velocity of the crank is

minimal (highest gear).

Assuming the optimal crank orientation, the ‘academic’ Hull Oval may

be considered as being the best performing non-circular chainring but will

most probably be problematic for practical use. The extreme ovality may

cause front derailleur problems. This non-circular chainring was designed

to test the hypothesis that the related angular velocity profile serves to

effectively reduce internal work (pedalling rates 80-100 rpm) compared to

constant angular velocity pedalling (circular chainring).

The results of the LM-Super Oval with optimal crank position support

completely earlier findings of Rankin and Neptune (2008): ovality of

about 30 % is needed for a crank power increase of nearly 3% at 90 rpm

compared to a conventional circular chainring.

O.symetric-Harmonic is the best performing commercially available

non-circular chainring when the crank is oriented in the optimal position.

The ‘academic’ Rasmussen Oval, although having an ovality of 30%

shows significantly weaker crank power gain compared to the LM-S Oval

and the O.symetric-Harmonic. The professor Rasmussen design is a result

of an optimization process using the 3-D software AnyBody to find the

chainring shape that minimizes the maximum muscle activation. Indeed,

the reduction of peak knee power in e.g. the extensor muscles is

significant (-9.5%), but probably leads to a lower than expected increase

in crank power.

The Polchlopek Oval, although ‘comparable’ to the O.symetric-

Harmonic, performs much weaker than this last one (if crank optimal).

Both non-circular chainwheels have the same ovality, the same optimal

crank orientation and both have two ‘circle segments’ bridged by two ‘flat

teeth segments’.

However the centres of the O.symetric circle segments are also the centre

of the oval, whereas the centres of the Polchlopek circle segments are not,

but located on the major axis.

It is quite remarkable that Edmond Polchlopek the inventor of the oval

design, was almost intuitively able to develop a non-circular chainring

with a crank orientation very close to optimal.

37

For both OVUM ellipses (ovality 1.018 and 1.024) at optimal crank

orientation, the impact of the ovality on the bio-mechanical results are

clearly illustrated: higher ovality causes better performances.

It is clear that the Ogival was released onto the market with a completely

wrong crank orientation. The mathematical model confirms the comments

from users about relatively quick muscle fatigue in the knee joint. Reorienting

the extreme crank position into the optimal orientation improves

the performances dramatically. New designs with improved (adaptable)

crank orientation and other (higher) ovalities are recently available for the

market but have not been studied yet.

The Q-Ring is a brilliant example of excellent manufacturing

workmanship but is first and foremost a compromise solution due to

technical compatibilities and marketing reasons: ovality 1.10, slightly

modified ellipse and crank at 74°. But as with all compromises, this oval

is sacrificing most of its potential advantages. The problem of the Q-Ring

is firstly its lack of ovality and secondly, the crank orientation. Even with

the crank oriented in the optimal position the Q-Ring performances are

disappointing and remain very weak. The mathematical model does not

confirm the performance figures published by Rotor, neither in the crank

orientation as advised by Rotor, nor in any other crank angle orientation.

Biopace (ovality:1.04; crank –8.2°): this unusual crank orientation versus

major axis brings the highest gear at the dead spots.

This low ovality Biopace design (1.04) behaves roughly as a circular

chainring. Earlier models with higher ovality (e.g. 1.17 or 1.09 …) gave

an irregular and uncomfortable pedalling sensation. Users frequently

reported knee problems. The solution implemented to reduce these

problems was to reduce the ovality (1.04), in fact making it irrelevant.

The mathematical model reveals the uncomfortable aspects and confirms

what riders already concluded in the past: the Biopace is a totally wrong

concept ( crank arm oriented nearly parallel to the major axis ).

As illustrated throughout the study, the mathematical model can be used

as a tool for design optimization.

38

8. Overview of non-circular chainrings

O.symetric-Harmonic

Hull oval

Rasmussen oval

Q-Ring (Rotor)

Biopace

Ovum

Ogival

Polchlopek oval

39

Acknowledgements

The authors are grateful to Chris Blakeman, M.Sc.Matls.Eng and to

Anne-Marie Malfait, MD Ph.D. for their constructive comments on the

manuscript and to Gaby Demeester, M.Sc.Mech.Eng., Lawyer and Patent

Attorney for his advice on how to protect the content of this paper.

References

1. BARANI, D., COMMANDRE, F., and DIGION, A., The ‘Harmonic Chainring’: presentation

and biomechanical characteristics. Med Sport 68: 77-81, 1994.

2. BOLOURCHI, F., and HULL, M.L., Measurement of rider induced loads during simulated

bicycling. Int. J. Sport Biomechanics 1, 308-329, 1985.

3. BURKE, R., High Tech Cycling. Human Kinetics, 1996.

4. CORDOVA MARTINEZ, A., VILLA VINCENTO, G., SECO CALVO, J., and LATASA

ZUDAIRE, I., Analysis of physiological and biomechanical effects of oval variable geared

chainrings (Q-Rings) in comparison to conventional circular chainrings. Preliminary report on

Q-Rings. University of Valladolid, Department of Physiotherapy,2006.

5. DAPENA, J., A method to determine the angular momentum of a human body about three

othogonal axes passing through its center of gravity. Journal of Biomechanics 11, 251-

256,1978.

6. DEMPSTER, W. T., and GANGRAN, R.L., Properties of body segments based on seize and

weight. American Journal of Anatomy, 120, 33-54, 1967.

7. HULL, M.L., GONZALES, H. and REDFIELD, R., Optimization of pedaling rate in cycling

using a muscle stress-based objective function. Int. J. Sport Biomechanics 4, 1-21,1988.

8. HULL, M.L.and JORGE, M., A method for biomechanical analysis of bicycle pedalling.

J. Biomechanics 18: 631-644, 1985.

9. HULL, M.L., WILLIAMS, M., WILLIAMS, K., and KAUTZ, S.A., Physiological response to

cycling with both circular and non-circular chainrings. Medicine and Science in Sports and

Exercise 24/ 1114-1122, 1992

10. OKAJIMA, S., Designing chainwheels to optimize the human engine. Bike Tech 2:1-7, 1983.

11. RANKIN, J.F., NEPTUNE, R.R., A theoretical analysis of an optimal chainring shape to

maximize crank power during isokinetic pedaling. Journal of biomechanics 41, 1494-1502,

2008.

12. REDFIELD, R., and HULL, M.L., Prediction of pedal forces in bicycling using optimization

methods. J. Biomechanics 19: 523-540, 1986.

13. REDFIELD, R., and HULL, M.L., On the relation between joint moments and pedalling rates

at constant power in bicycling. J. Biomechanics 19: 317-329, 1986.

14. WHITSETT, C.F., Some dynamic response characteristics of weightless man. AMRL

Technical Documentary report 63-18, 1963.

Copyright Ó 2006 (1st release) – 2010 (2nd release), by the authors

Lievin Malfait

Kapel Milanenstraat 2,

8550 Zwevegem (Belgium - Europe)

Gilbert Storme

Tiegemstraat 11,

8572 Kaster (Belgium - Europe)

Corresponding authors: malfait.lievin@skynet.be gilbertstorme@yahoo.com
